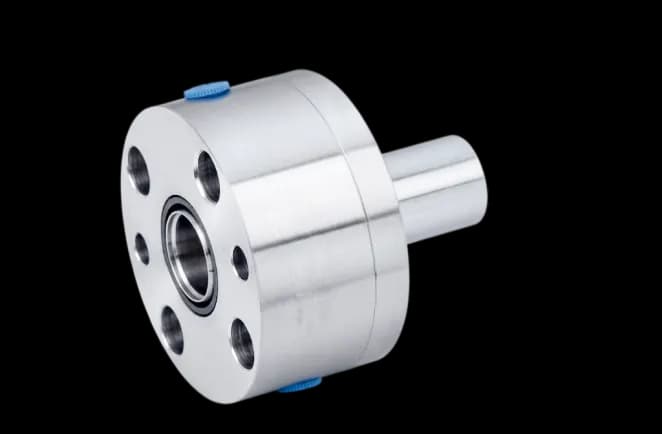

Type SH 500 / D - Face to Face Seal
Face to Face double balanced mechanical seal. This seal is excellent high pressure and high speed conditions.
Available Materials
Seal Ring Faces
Sp. Carbon, SiC
Seat Faces
SiC and TC
Elastomer
Viton, EPDM, NBR, FFKM
MOC
SS 316, Duplex, Super Duplex, Hastelloy C, Monal
Applies To
Ideal for boiler feed water and heavy duty process pumps.
Technical Specifications
| Shaft Dia | 20mm to 100mm |
| Pressure | Up to 60 bar |
| Temperature | -30°C to 260°C |
| Speed | 3600 r.p.m. |
