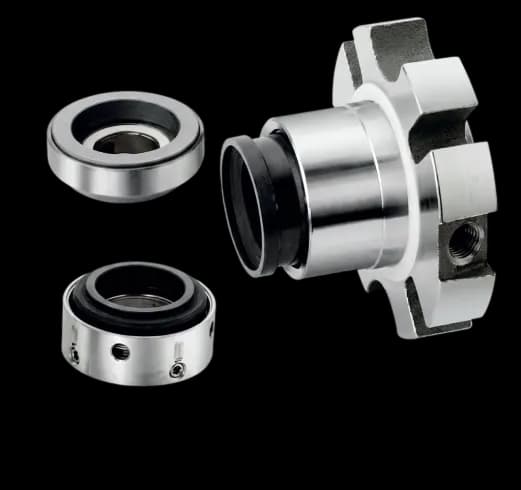

Seal Type SH1100/D - Double Semi-Cartridge
Double Semi-Cartridge mechanical seal. Dual directional design. Slurry seal up to 20%. Inside mounted seal. Balanced Seal.
Available Materials
Seal Ring Faces
SiC, Carbon and TC
Seat Faces
SiC and TC
Elastomer
Viton, TTV, FEP and FFKM
MOC
SS 316 - Change of MOC On Request
Applies To
Technical Specifications
| Shaft Dia | 20mm to 80mm |
| Pressure | Full Vacuum to 8 bar |
| Temperature | -30°C to 260°C |
| Speed | 3600 r.p.m. |
