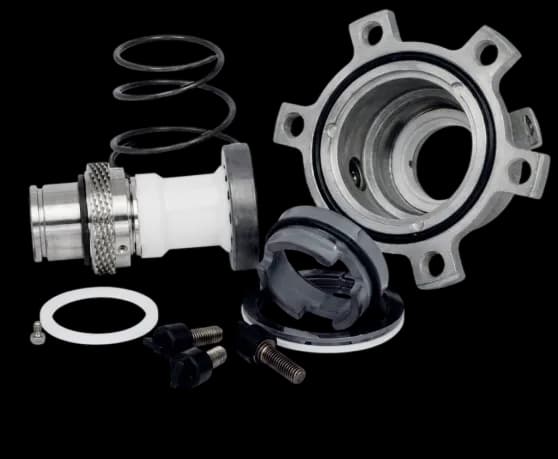

Seal Type SH1300/51U/P IMS - Slurry Seal for Non-Metallic Pump
Double Cartridge mechanical seal. Abrasive Slurry seal up to 30% due to it's specially design of back plate and shaft. Additional pumping ring helps to provide better lubrication to seal faces. Inside mounted seal Balanced seal.
Available Materials
Applies To
Technical Specifications
| Shaft Dia | 20mm to 80mm |
| Pressure | Up to 8 bar |
| Temperature | up to 120°C |
| Speed | 3600 r.p.m. |
