Mechanical Seals
S.H. ENGINEERING

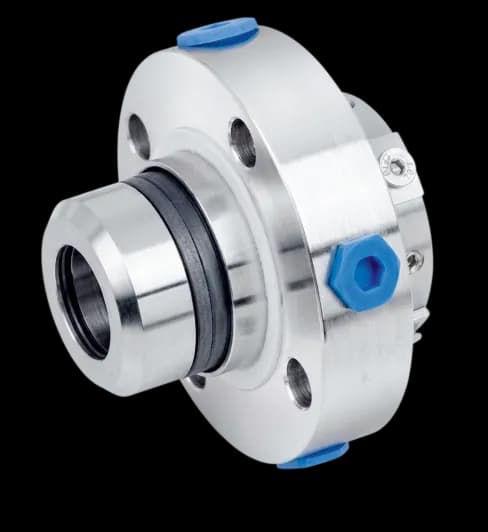

Seal Type SH1600/D - Double Cartridge
Double Cartridge Balanced mechanical seal. Dual directional design. Inside mounted seal. Unitized, easy-to-fit design.
Available Materials
Seal Ring Faces
Carbon, SiC and TC
Seat Faces
TC and SiC
Elastomer
Viton, PTFE, and FFKM
MOC
SS 316 - Change Of MOC On Request
Applies To
Technical Specifications
| Shaft Dia | 20mm to 70mm |
| Pressure | Up to 15 bar |
| Temperature | -30°C to 260°C |
| Speed | 3600 r.p.m. |
