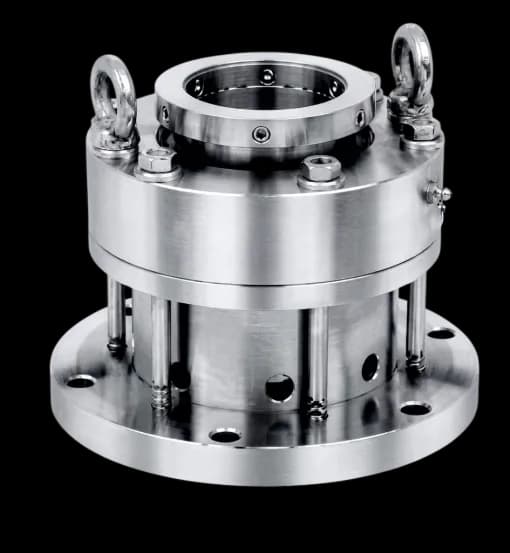

Type SHAD 501 & SHAD 501/B - Dry Running Seal
Dry running balanced mechanical seal. This Seals are excellent with low RPM operation in Vacuum pressure conditions. Design without bearing (Type - SHAD 501) OR with Integral bearing (Type - SHAD 501/B). Design for Top, Bottom and Side entry.
Available Materials
Applies To
Technical Specifications
| Shaft Dia | 20mm to 150mm |
| Pressure | Full Vacuum to 8 bar |
| Temperature | -30°C to 150°C |
| Speed | 3000 r.p.m. |
