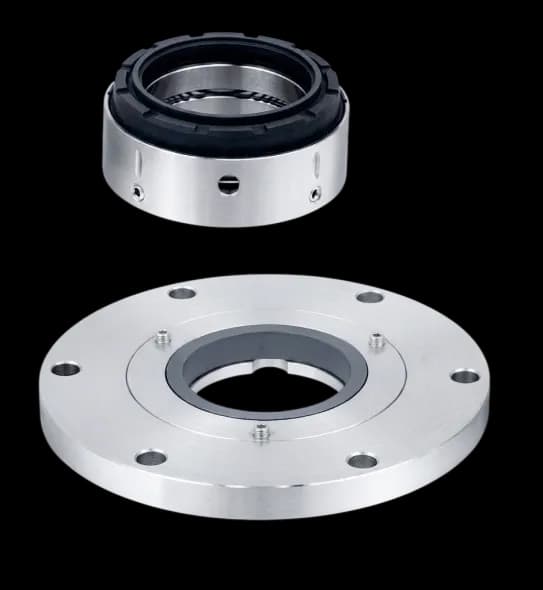

Type SHAD 511 & SHAD 511/B - High Speed Dry Running
High speed Dry running balanced mechanical seal. This seal are excellent with High RPM operation in Vacuum and pressure conditions. Design without bearing (Type - SHAD 511) or with Integral bearing (Type - SHAD 511/B). Design for Top, Bottom and Side entry.
Available Materials
Applies To
Technical Specifications
| Shaft Dia | 25mm to 150mm |
| Pressure | Full Vacuum to 8 bar |
| Temperature | -30°C to 140°C |
| Speed | 900 r.p.m. |
